ألواح سيدنج للجبهة للبرغي المخفى MP-WH/S

General Information
Technicial Specifications
Load Carrying Table
Surface Shapes

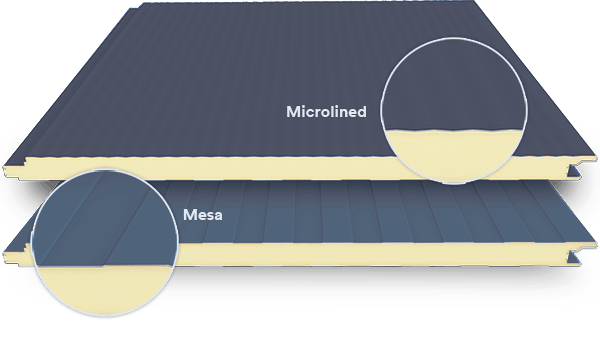

Surface of the panel can be produced as Mesa and Microlined texture. Panels can be montaged horizontally, vertically or angled and offers unlimited design possibilities with colour options to the designers.

Insulation Material	Fire Class	Density	Insulation Thickness (mm)	Thermal Conductivity (λ)	U Value	R Value
Insulation Material	Fire Class	Density	Insulation Thickness (mm)	Thermal Conductivity (λ)	(W/m²K)	(h·ft²·°F/Btu)
Polyurethane (PUR)	B s2 d0 (TS EN 13501-1)	40 (±2)kg/m³	40	0,022 W/mK	0,52	11
			50		0,38	15
			60		0,35	16
			80		0,29	20
			100		0,23	25
			120		0,19	30
			150		0,15	38
			180		0,12	46
			200		0,11	51
External Sheet	Prepainted Galvanized Steel/Aluminium 0.35-0.40-0,45-0,50-0,60-0,70 mm
Internal Sheet	Prepainted Galvanized Steel/Aluminium 0.30-0.35-0.40-0,45-0,50-0,60-0,70 mm

U value calculated due to TS EN 14509.U value converted to American R Value.

Insulation Material	Insulation Thickness (mm)	External Steel (mm)	Internal Steel (mm)	Weight (kg/m²)	Span Type (mm)	Span Distance
						1000	1500	2000	2500	3000
						Max.Distributed Load (kg/m²)
Polyurethane (PUR)	40	0,50	0,40	9,36	Two Span	218	169	140	111	x
	40	0,50	0,40	9,36	Multi Span	224	174	141	114	x
	50	0,50	0,40	9,76	Two Span	285	225	189	163	x
	50	0,50	0,40	9,76	Multi Span	292	232	192	161	110
	60	0,50	0,40	10,16	Two Span	354	282	240	205	121
	60	0,50	0,40	10,16	Multi Span	360	290	245	209	143
	80	0,50	0,40	10,96	Two Span	492	400	345	305	215
	80	0,50	0,40	10,96	Multi Span	498	410	253	309	221
	100	0,50	0,40	11,76	Two Span	632	521	453	404	310
	100	0,50	0,40	11,76	Multi Span	638	530	463	412	316
	120	0,50	0,40	12,56	Two Span	773	643	563	507	396
	120	0,50	0,40	12,56	Multi Span	779	653	576	517	402
	150	0,50	0,40	13,76	Two Span	985	828	733	664	523
	150	0,50	0,40	13,76	Multi Span	990	838	746	677	532
	180	0,50	0,40	14,96	Two Span	1198	1014	903	823	652
	180	0,50	0,40	14,96	Multi Span	1203	1024	918	839	665
	200	0,50	0,40	15,76	Two Span	1341	1139	1018	931	740
	200	0,50	0,40	15,76	Multi Span	1345	1148	1033	948	754

Notes:
. Values have been calculated using the allowable “Stress Design” method, taking self weight, imposed loads (wind load) and temperature (Δt=±20ºC) into account.
. If loads are effected as downwards l/200 and l/150 , ıf loads are effected as suction l/150 deflection limits have been used
. Values have been calculated using the steel quality fγ=240 Mpa(Yield Strength).
. In Panel weight calculations, Polyurethane density is taken as 40 kg/m3 and Polyisocyanurate density is taken as 42 kg/m3.
