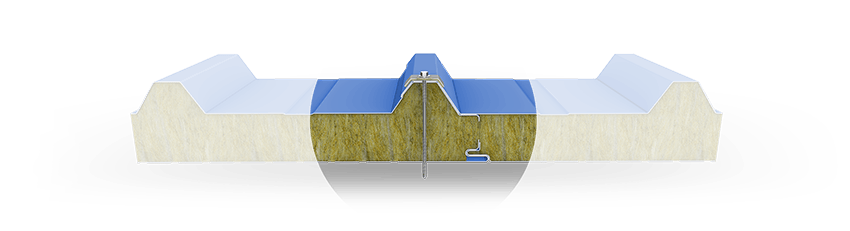

ألواح الأسقف العازلة للصوت MP-5RA

General Information
Technicial Specifications
Load Carrying Table
Sound Swallowing Values

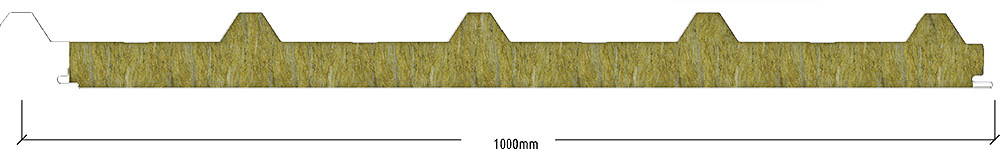

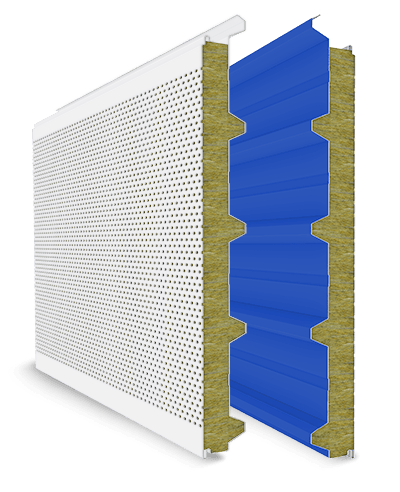

Single side perforated rockwool insulated sandwich panels sound absorption indices btw 8-12 dB and sound insulation indices btw 30-35 dB.

Insulation Material	Fire Class	Density	Insulation Thickness (mm)	Thermal Conductivity (λ)	U Value	R Value
Insulation Material	Fire Class	Density	Insulation Thickness (mm)	Thermal Conductivity (λ)	(W/m²K)	(h·ft²·°F/Btu)
Rockwool	A2 s1 d0 (TS EN 13501-1)	90-100-110-120 kg/m³	50	0,036 W/mK	0,68	8
			60		0,58	10
			80		0,44	13
			100		0,35	16
			120		0,29	19
			150		0,24	24
External Sheet	Prepainted Galvanized Steel 0.50-0,60-0,70 mm
Internal Sheet	Prepainted Galvanized Steel 0.50-0.60-0.70 mm

U value calculated due to TS EN 14509.U value converted to American R Value.

Insulation Material	Insulation Thickness (mm)	External Steel (mm)	Internal Stee l (mm)	Weight (kg/m²)	Span Type (mm)	Span Distance
						1000	1500	2000	2500	3000
						Max.Distributed Load (kg/m²)
Rockwool	50	0,50	0,50	14,30	Two Span	693	519	407	329	259
	50	0,50	0,50	14,30	Multi Span	705	530	410	329	262
	60	0,50	0,50	15,30	Two Span	800	532	415	351	283
	60	0,50	0,50	15,30	Multi Span	811	543	421	351	285
	80	0,50	0,50	17,30	Two Span	830	549	428	360	293
	80	0,50	0,50	17,30	Multi Span	838	559	434	363	295
	100	0,50	0,50	19,30	Two Span	849	561	436	367	298
	100	0,50	0,50	19,30	Multi Span	856	569	442	371	299
	120	0,50	0,50	21,30	Two Span	863	569	442	370	301
	120	0,50	0,50	21,30	Multi Span	868	576	448	374	302
	150	0,50	0,50	24,30	Two Span	877	578	448	376	304
	150	0,50	0,50	24,30	Multi Span	881	583	453	380	305

Notes:
. Values have been calculated using the allowable “Stress Design” method, taking self weight, imposed loads (wind load) and temperature (Δt=±20ºC) into account.
. If loads are effected as downwards l/200 and l/150 , ıf loads are effected as suction l/150 deflection limits have been used
. Values have been calculated using the steel quality fγ=240 Mpa(Yield Strength).
. In Panel weight calculations, Rockwool density is taken as 100 kg/m3.

Building elements resist to the airborne sound transition with their masses. Therefore as the weight of a wall increases, the loss of passage increases. However to supply sound insulation by thicken the wall is not functional and economical cause of the load that brings to the carrier system, formation of sound bridges and loss of space.

ألواح الأسقف العازلة للصوت MP-5RA

Sound Absorption of 100mm Thick Roof Panel

Sound Insulation of 50/80/100mm Thick Roof Panels
