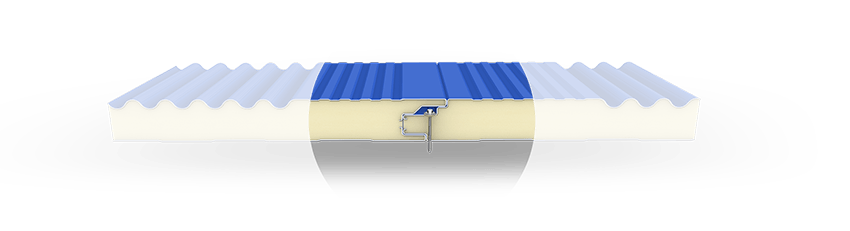

ألواح الجبهة للبرغي المخفى للتجويف النصفى MP-WH/HS

General Information
Technicial Specifications
Load Carrying Table
Surface Shapes

Surface of the panel can be produced as Mesa and Microlined texture. Panels can be montaged horizontally, vertically or angled and offers unlimited design possibilities with colour options to the designers.

Insulation Material	Fire Class	Density	Insulation Thickness (mm)	Thermal Conductivity (λ)	U Value	R Value
Insulation Material	Fire Class	Density	Insulation Thickness (mm)	Thermal Conductivity (λ)	(W/m²K)	(h·ft²·°F/Btu)
Polyisocyanurate (PIR)	B s1 d0 (TS EN 13501-1)	42 (±2)kg/m³	40	0.020 W/mK	0,47	12
			50		0,38	15
			60		0,32	18
			80		0,26	21
			100		0,21	27
			120		0,17	33
			150		0,14	42
			180		0,11	50
			200		0,10	56
External Sheet	Prepainted Galvanized Steel/Aluminium 0,50-0,60-0,70 mm
Internal Sheet	Prepainted Galvanized Steel/Aluminium 0.30-0.35-0.40-0,45-0,50-0,60-0,70 mm

U value calculated due to TS EN 14509.U value converted to American R Value.

Insulation Material	Insulation Thickness (mm)	External Steel (mm)	Internal Steel (mm)	Weight (kg/m²)	Span Type (mm)	Span Distance
						1000	1500	2000	2500	3000
						Max.Distributed Load (kg/m²)
Polyisocyanurate (PIR)	40	0,50	0,40	9,73	Two Span	250	196	160	126	x
	40	0,50	0,40	9,73	Multi Span	257	201	163	134	x
	50	0,50	0,40	10,15	Two Span	325	258	215	180	108
	50	0,50	0,40	10,15	Üç Açıklık	332	265	220	185	115
	60	0,50	0,40	10,57	Two Span	400	321	273	233	140
	60	0,50	0,40	10,57	Multi Span	407	330	278	238	147
	80	0,50	0,40	11,41	Two Span	554	554	389	343	212
	80	0,50	0,40	11,41	Multi Span	561	462	398	349	223
	100	0,50	0,40	12,25	Two Span	706	584	509	454	300
	100	0,50	0,40	12,25	Multi Span	648	596	520	462	314

Notes:
. Values have been calculated using the allowable “Stress Design” method, taking self weight, imposed loads (wind load) and temperature (Δt=±20ºC) into account.
. If loads are effected as downwards l/200 and l/150 , ıf loads are effected as suction l/150 deflection limits have been used
. Values have been calculated using the steel quality fγ=240 Mpa(Yield Strength).
. In Panel weight calculations, Polyurethane density is taken as 40 kg/m3 and Polyisocyanurate density is taken as 42 kg/m3.
