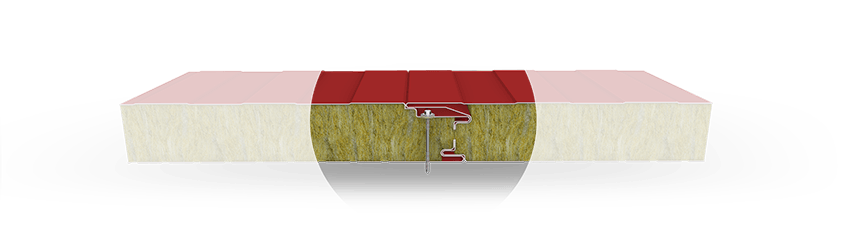

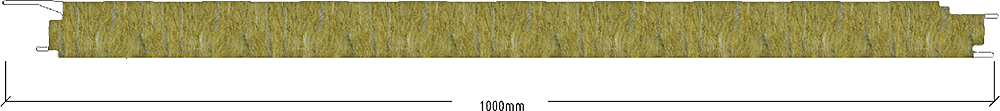

ألواح الجبهات للبرغي المخفي العازلة للصوت MP-WHA

General Information
Technicial Specifications
Load Carrying Table
Sound Swallowing Values

Single side perforated rockwool insulated sandwich panels sound absorption indices btw 8-12 dB band sound insulation indices btw 30-35 dB.

Insulation Material	Fire Class	Density	Insulation Thickness (mm)	Thermal Conductivity (λ)	U Value	R Value
Insulation Material	Fire Class	Density	Insulation Thickness (mm)	Thermal Conductivity (λ)	(W/m²K)	(h·ft²·°F/Btu)
Rockwool	A2 s1 d0 (TS EN 13501-1)	90-100-110-120 kg/m³	50	0,036 W/mK	0,79	7
			60		0,67	9
			80		0,46	12
			100		0,36	16
			120		0,30	19
			150		0,24	24
External Sheet	Prepainted Galvanized Steel 0.50-0,60-0,70 mm
Internal Sheet	Prepainted Galvanized Steel 0.50-0.60-0.70 mm

U value calculated due to TS EN 14509.U value converted to American R Value.

Insulation Material	Insulation Thickness (mm)	External Steel (mm)	Internal Steel (mm)	Weight (kg/m²)	Span Type (mm)	Span Distance
						1000	1500	2000	2500	3000
						Max.Distributed Load (kg/m²)
Rockwool	50	0,50	0,50	13,85	Two Span	321	298	211	x	x
	50	0,50	0,50	13,85	Multi Span	332	303	256	179	x
	60	0,50	0,50	14,85	Two Span	381	350	293	153	x
	60	0,50	0,50	14,85	Multi Span	397	357	322	217	150
	80	0,50	0,50	16,85	Two Span	516	462	432	254	136
	80	0,50	0,50	16,85	Multi Span	530	469	444	306	200
	100	0,50	0,50	18,85	Two Span	653	577	537	386	197
	100	0,50	0,50	18,85	Multi Span	667	584	549	411	257
	120	0,50	0,50	20,85	Two Span	791	692	643	521	273
	120	0,50	0,50	20,85	Multi Span	807	701	656	532	322
	150	0,50	0,50	23,85	Two Span	1010	870	818	732	418
	150	0,50	0,50	23,85	Multi Span	1023	1023	818	745	434

Notes:
. If loads are effected as downwards l/200 and l/150 , ıf loads are effected as suction l/150 deflection limits have been used
. Values have been calculated using the allowable “Stress Design” method, taking self weight, imposed loads (wind load) and temperature (Δt=±20ºC) into account.
. Values have been calculated using the steel quality fγ=240 Mpa(Yield Strength).
. In Panel weight calculations, Rockwool density is taken as 100 kg/m3.

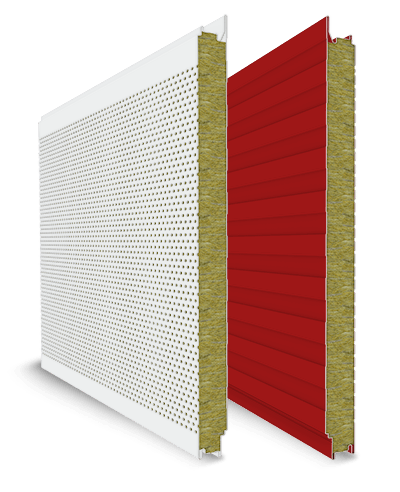

Acoustic panel which is formed of Steel+Acoustic Tulle+Perforated Steel and light but durable, is produced to supply sound absorption inside and sound insulation between inside and outside of the steel structured and industrial buildings. It is aimed to prevent echoing of the sound by the perforation on the sheet surface. In addition to its acoustic properties, cause of the rockwool insulation, Acoustic Panel also supplies heat insulation and fire protection.

ألواح الجبهات للبرغي المخفي العازلة للصوت MP-WHA

Sound Absorption of 100mm Thick Wall Panel

Sound Insulation of 50/80/100mm Thick Wall Panels
