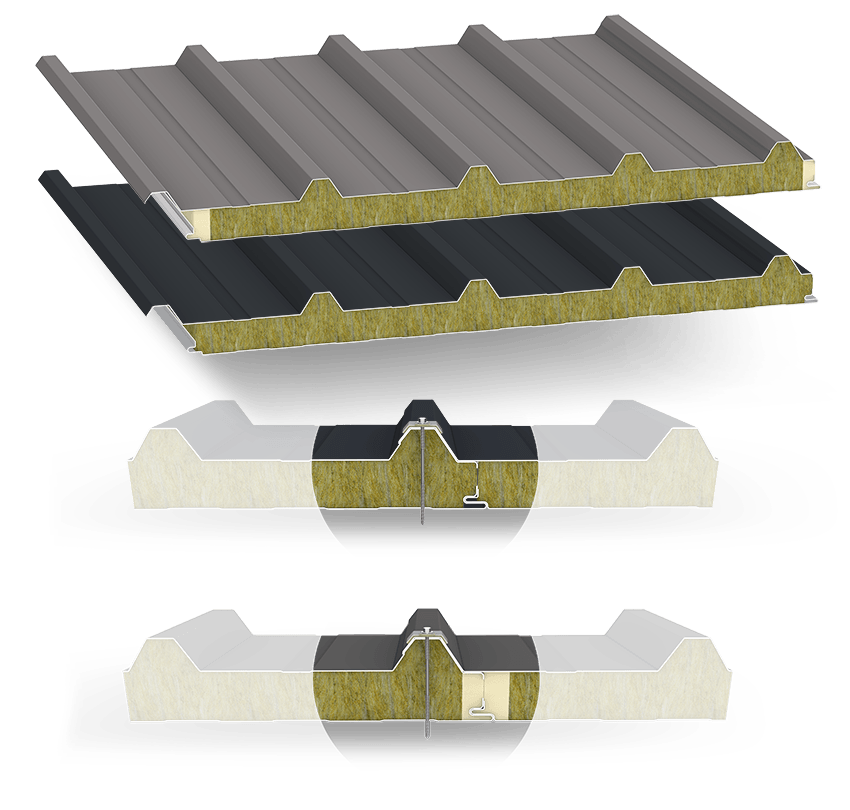

ألواح الأسقف ذو الحدوات MP-5R 5

General Information

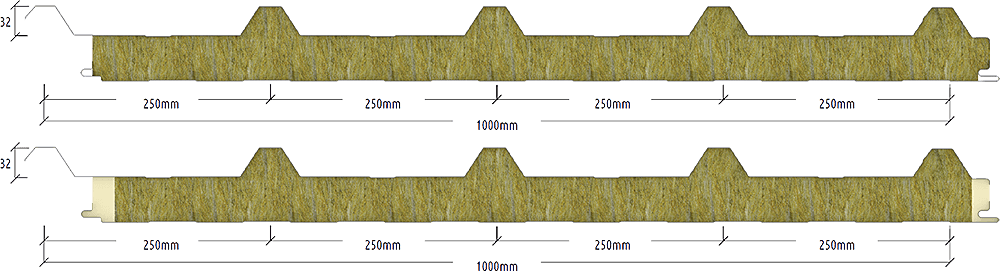

Technicial Specifications
Load Carrying Table

Rockwool insulated panels insulation core must not get wet and muste be protected against moisture .Otherwise the material will absorb the water inside and get heavy; and If the drying process can not be carried out, in time the material will decay and deterioration will occur. The panel eave point must be closed with an accessory and lap detail must be formed.

Insulation Material	Fire Class	Density	Insulation Thickness (mm)	Thermal Conductivity (λ)	U Value	R Value
Insulation Material	Fire Class	Density	Insulation Thickness (mm)	Thermal Conductivity (λ)	(W/m²K)	(h·ft²·°F/Btu)
Rockwool	A2 s1 d0 (TS EN 13501-1)	90-100-110-120 kg/m³	50	0,036 W/mK	0,68	8
			60		0,58	10
			80		0,44	13
			100		0,35	16
			120		0,29	19
			150		0,24	24
External Sheet	Prepainted Galvanized Steel 0.50-0,60-0,70 mm
Internal Sheet	Prepainted Galvanized Steel 0.40-0.45-0.50-0.60-0.70 mm

Insulation Material	Fire Class	Density	Insulation Thickness ( mm )	Thermal Conductivity (l)
Insulation Material	Fire Class	Density	Insulation Thickness ( mm )	Thermal Conductivity (l)
Rockwool	A2 s1 d0 (TS EN 13501-1)	90-100-110-120 kg/m³	50	0,036 W/mK
			60
			80






Polyisocyanurate (PIR)	B s1 d0 (TS EN 13501-1)	42 (±2)kg/m³	100	0.020 W/Mk
			120
			150

U value calculated due to TS EN 14509.U value converted to American R Value.

Insulation Material	Insulation Thickness (mm)	External Steel (mm)	Internal Steel (mm)	Weight (kg/m²)	Span Type (mm)	Span Distance
						1000	1500	2000	2500	3000
						Max.Distributed Load (kg/m²)
Rockwool	50	0,50	0,40	13,59	Two Span	543	369	257	179	109
	50	0,50	0,40	13,59	Multi Span	555	380	260	179	112
	60	0,50	0,40	14,59	Two Span	650	382	265	201	133
	60	0,50	0,40	14,59	Multi Span	661	393	271	201	135
	80	0,50	0,40	16,59	Two Span	680	399	278	210	143
	80	0,50	0,40	16,59	Multi Span	688	409	284	213	145
	100	0,50	0,40	18,59	Two Span	699	411	286	217	148
	100	0,50	0,40	18,59	Multi Span	706	419	292	221	149
	120	0,50	0,40	20,59	Two Span	713	419	292	220	151
	120	0,50	0,40	20,59	Multi Span	718	426	298	224	152
	150	0,50	0,40	23,59	Two Span	727	428	298	226	154
	150	0,50	0,40	23,59	Multi Span	731	433	303	230	155

Notes:
. Values have been calculated using the allowable “Stress Design” method, taking self weight, imposed loads (wind load) and temperature (Δt=±20ºC) into account.
. If loads are effected as downwards l/200 and l/150 , ıf loads are effected as suction l/150 deflection limits have been used
. Values have been calculated using the steel quality fγ=240 Mpa(Yield Strength).
. In Panel weight calculations, Rockwool density is taken as 100 kg/m³
