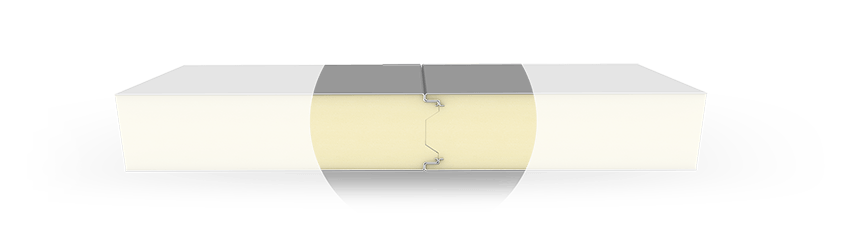

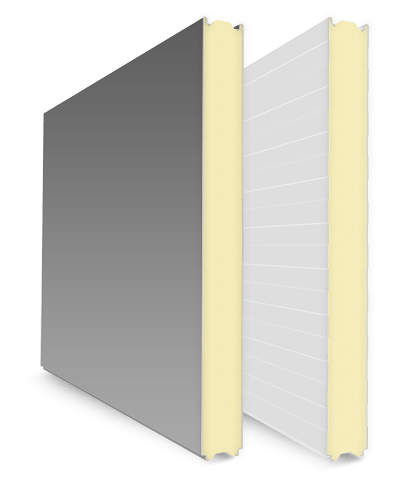

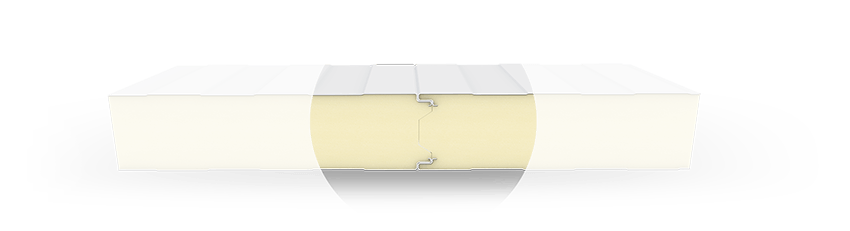

ألواح البولي يوريثين والايزوسيانورات للمخازن الباردة العازلة MP-CR
The Cold Rooms which are built to store the products in a healthy way at temperatures up to -40°C, cause high energy consumption to stay in low temperatures.PUR/PIR insulated cold room panel is the ideal building material to obtain heat insulation in cold room aplications to lower down the energy costs.
Determining the thickness of Cold Room panels depend on many factors;
- The difference of the temperature between inside and outside of the structure
- The type of the insulation core of Sandwich Panel
- Energy costs
- Building cost
- Design of Cooling System
|U Value||R Value|
|B s2 d0
(TS EN 13501-1)
|40 (±2)kg/m3||80||0,022 W/mK||0,27||21|
|External Sheet||Prepainted Galvanized Steel/Stainless Steel 0,50-0,60-0,70 mm|
|Internal Sheet||Prepainted Galvanized Steel/Stainless Steel 0,50-0,60-0,70 mm|
U value calculated due to TS EN 14509.U value converted to American R Value.
